W Cold Rolled Steel Palisade Fence Black Painted for Substations

We supply security palisade fence system designed for substation and utility perimeter protection. Typical fencing system is constructed with 'W' steel pales with triple-point spear tops and vehicle gates and pedestrian gates.

Palisade fene with w section pales and triple pointed tops offers anti climbing protection while the security gates provides controlled access for substations and other high-risk utility facilities.

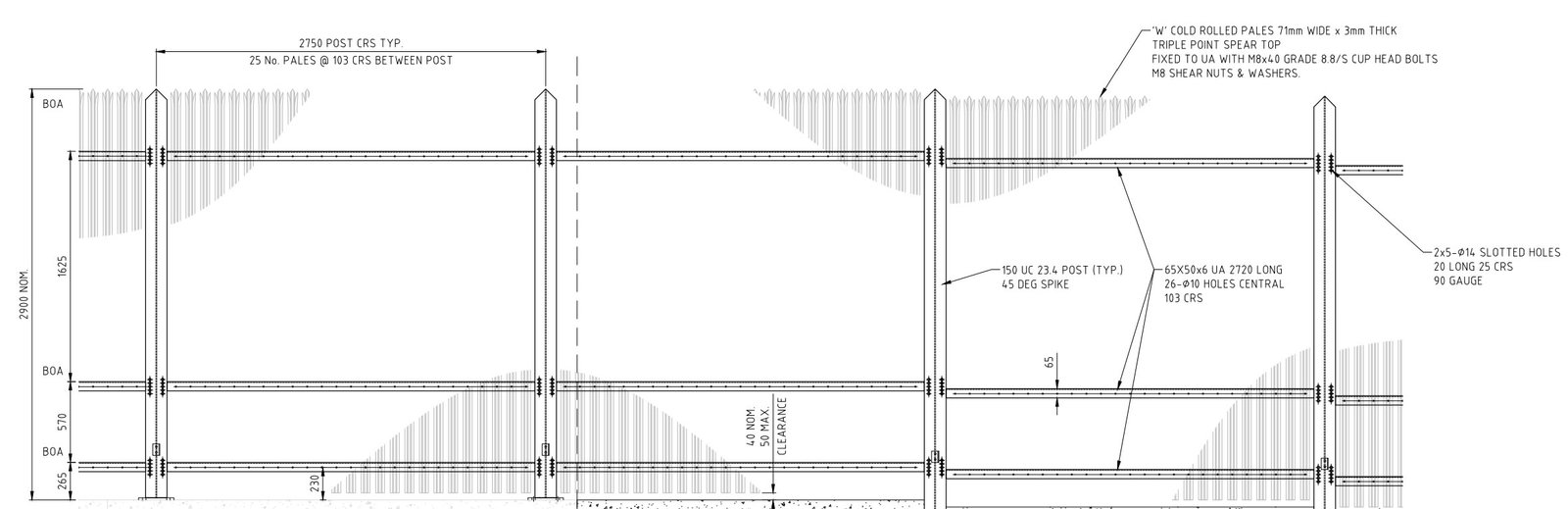

Palisade Fence System (Substation Security Fence– Black Painted)

Palisade Pales
'W' cold rolled pales 71 mm wide × 3 mm thick
Material: Cold rolled steel
Top: Triple point spear top

Substation Security Fence:

Rails and post
Rails: 65×50×6 UA, 2720 long
Rail punching: 26 × Ø10 holes (central) @ 103 CRS
Posts: 150 UC 23.4 post
Fixings (anti-tamper)
Pales fixed using M8×40 Grade 8.8/S cup head bolts, with M8 shear nuts & washers
Finish: All fence and gate components shall be painted black.

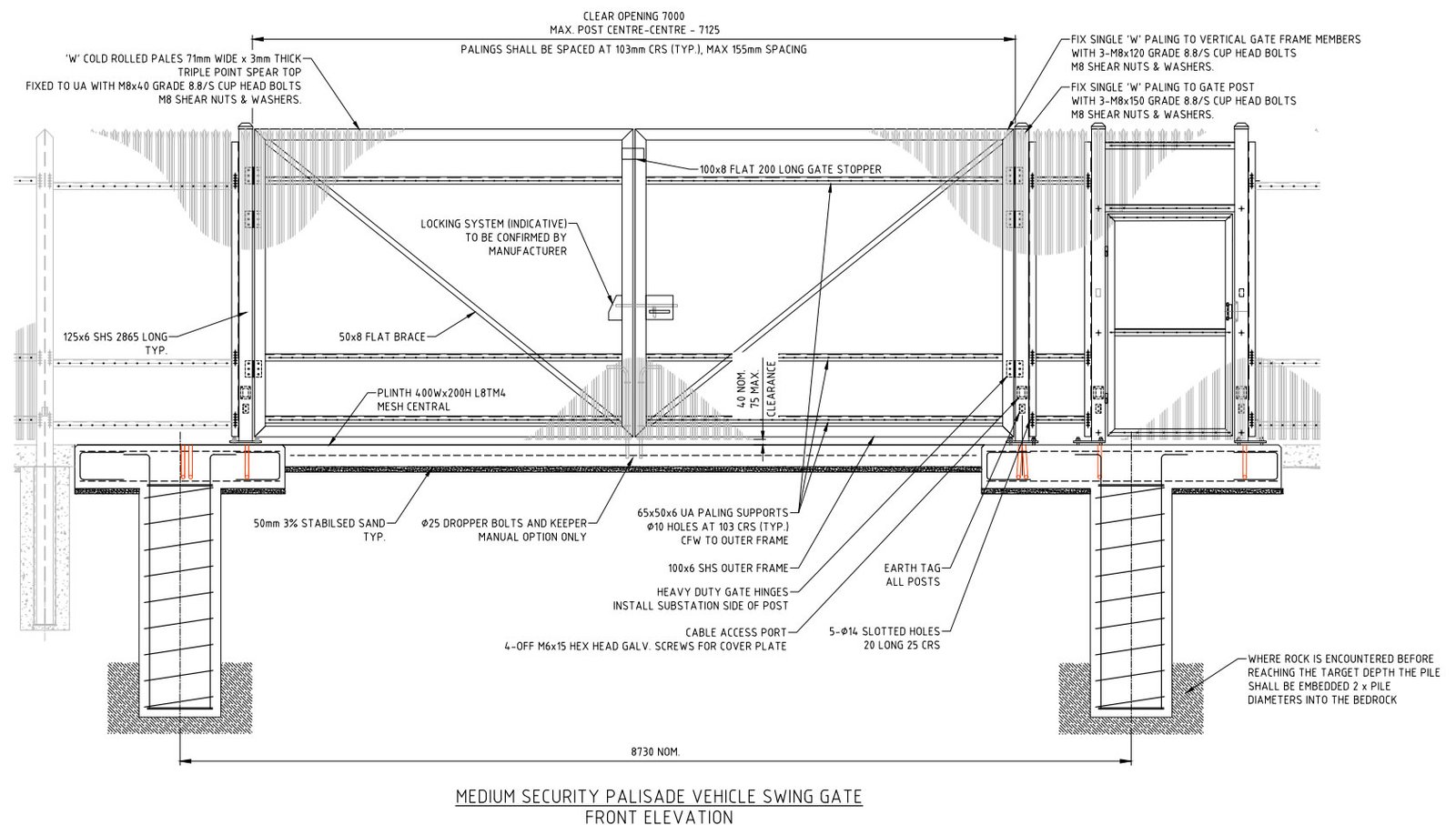

Vehicle Swing Gate (Medium Security Palisade Vehicle Gate)

Vehicle Swing Gate illustration:
Medium security palisade vehicle swing gate
Clear opening: approx. 7,500 mm
Overall gate length: approx. 7,950 mm
Gate height: approx. 2,900 mm

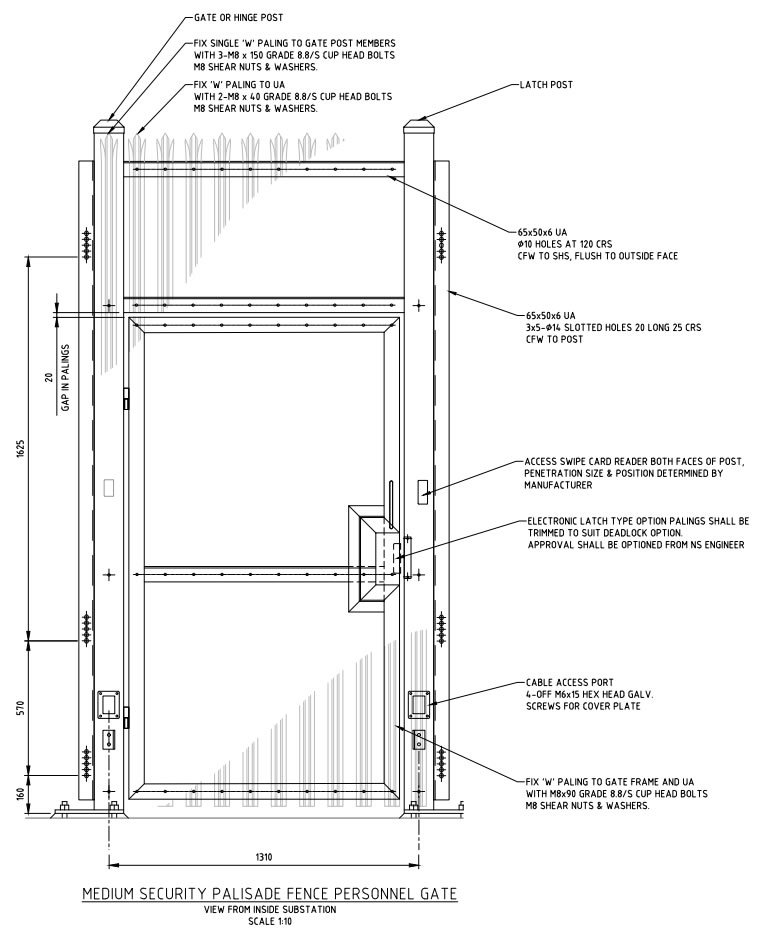

Pedestrian Gate (Palisade Fence Personnel Gate)

Pedestrian Gate Illustration:

Palisade Panels 2700 wide
Gates: Single Gates, set off Double Gates
Finish: Galvanized and Powder coated Black

Gates shall open inwards.
Hinges shall prevent outward swing.
All gate components shall be painted black.

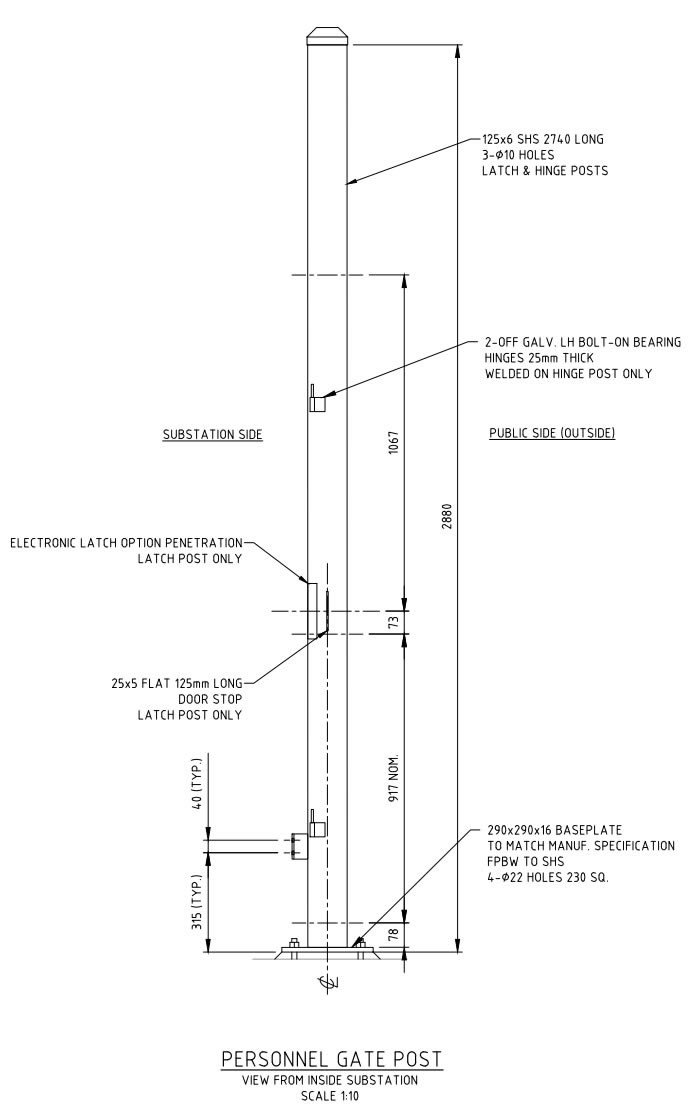

Gate posts (hinge & latch posts)

Post section: 125×65 SHS, 2740 long
3 × Ø10 holes (latch & hinge posts)
Hinges: 2-off galvanised LH bolt-on bearing hinges, 25 mm thick, welded on hinge post only

Baseplate
290×290×16 baseplate
FPBW to SHS
4 × Ø22 holes, 230 sq.

Door stop & electronic latch penetration (latch post only)
25×5 flat, 125 mm long door stop – latch post only
Electronic latch option penetration – latch post only

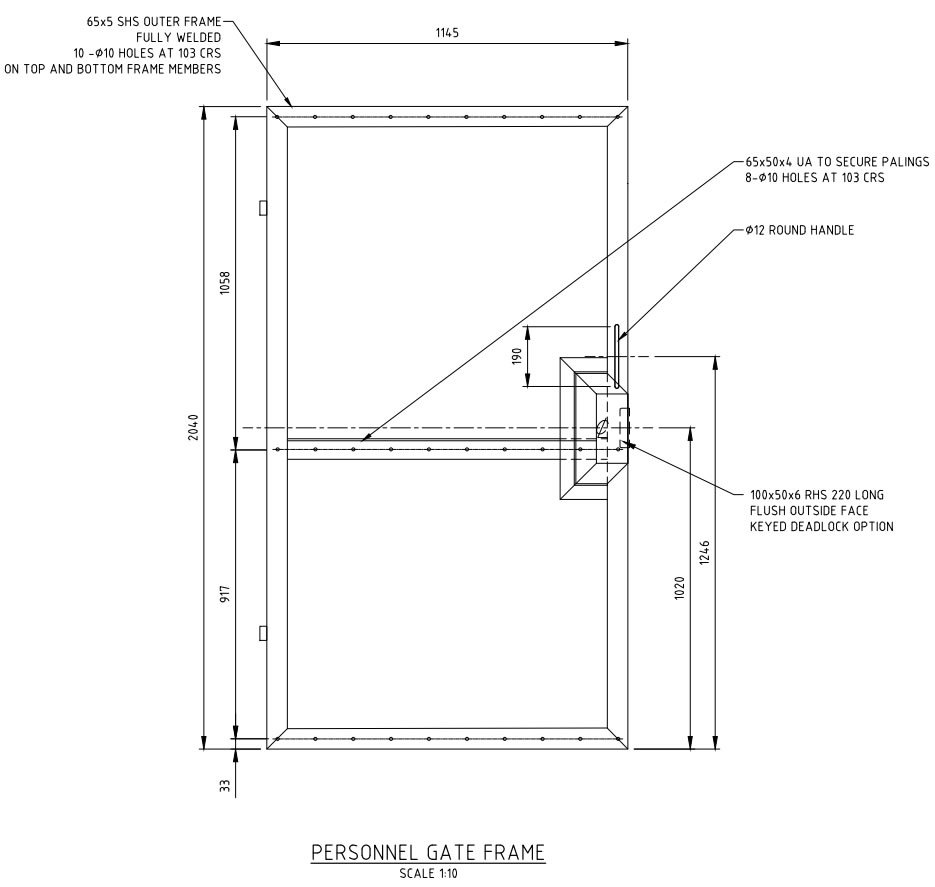

Gate Frame

Outer frame
65×5 SHS outer frame, fully welded
10 × Ø10 holes @ 103 CRS in top and bottom frame members

Palisade fixing rail on gate
65×50×6 UA to secure palings
8 × Ø10 holes @ 103 CRS

Handle & lock option: Ø12 round handle
100×50×6 RHS, 220 long, flush outside face – keyed deadlock option

Palisade attachment on the pedestrian gate
Fix single 'W' paling to gate post members with 3-M8×150 Grade 8.8/S cup head bolts, plus M8 shear nuts & washers
Fix 'W' paling to UA with 2-M8×40 Grade 8.8/S cup head bolts, plus M8 shear nuts & washers
Fix 'W' paling to gate frame and UA with M8×90 Grade 8.8/S cup head bolts, plus M8 shear nuts & washers

Cable access port (for electronic lock )
Cable access port with 4-off M6×15 hex head galvanised screws for cover plate
