Palisade Fence and Anti Climb Mesh Fence for Perimeter Security System
We manufacture and supply PALISADE FENCE and ANTICLIMB MESH FENCE for site perimeter patrol and safety system.
Typical size and design for customers references:
Palisade Security Fence Dimensions 3.2x x 3.2m
Rigid Panel Fence Anti Climb Mesh Fence 3.2 x 3.5 m
Fence System Type

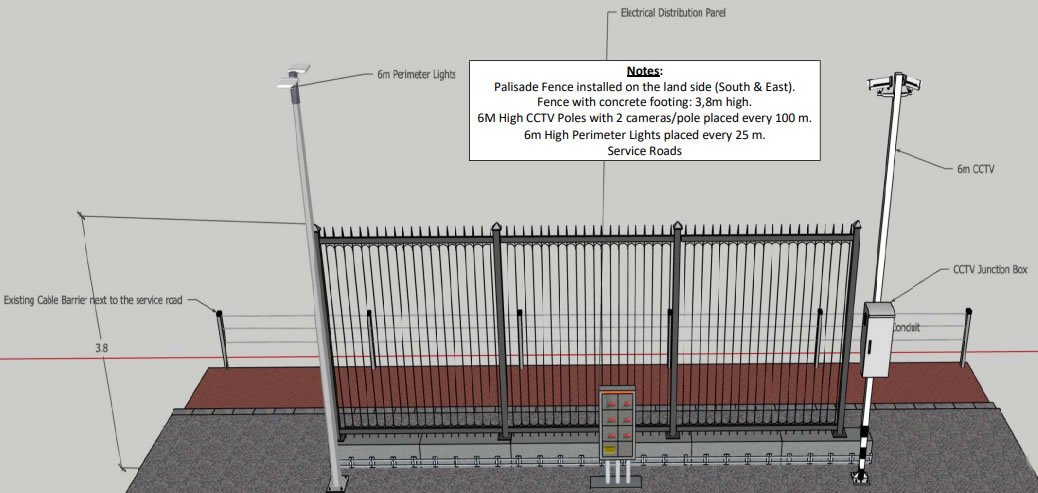

Palisade Fence with Gates: Palisade Fence with perimeter lights and patrol facilities
Palisade Fence
Fence with concrete footing: 3,8m high.
6M High CCTV Poles with 2 cameras/pole placed every 100 m.
6m High Perimeter Lights placed every 25 m.

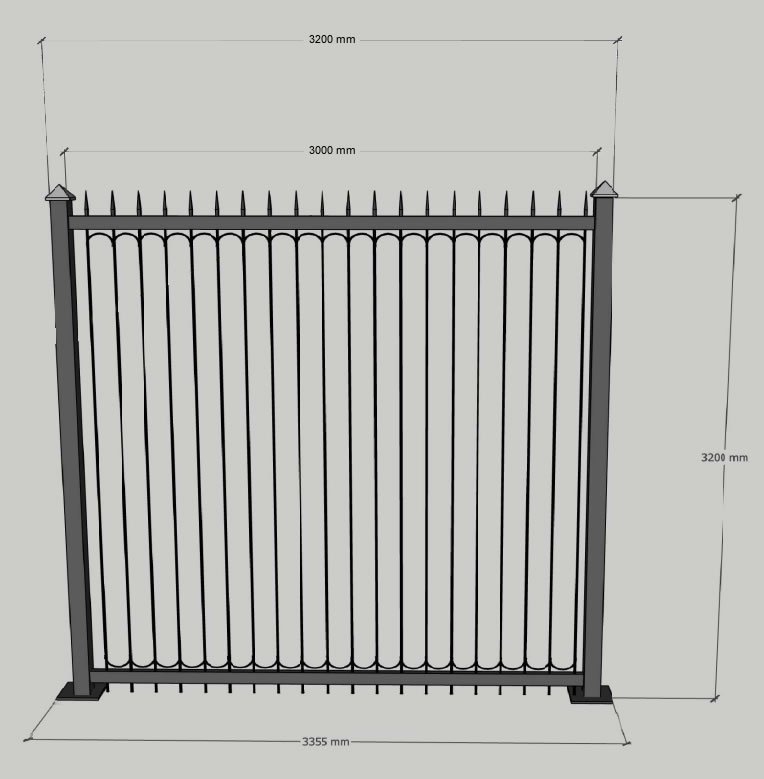

Palisade Fencing Gates:
Fence gate rail:
80x40x2 MM THK MS RHS Fence Bottom Rail Frame
80x40x2 MM THK MS RHS Fence Top Rail Frame
20x20mm mild steel solid bars placed at 150mm center to center
Gate post: 100mmx100mmx15mm
Base plate: 250mmx250mmx15mm

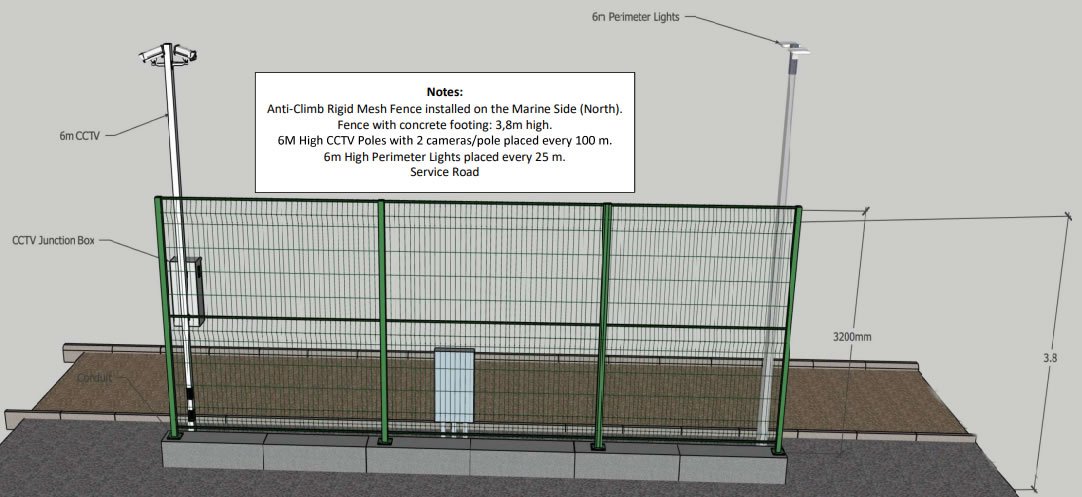

Anti-Climb Rigid Mesh Fence with Security Technology, Perimeter Lights and Patrol Facilites
Anti-Climb Rigid Mesh Fence:
Fence with concrete footing: 3,8m high.
6m High Perimeter Lights placed every 25 m.
3.2 m high Rigid Mesh Panel Anti Climb Fence

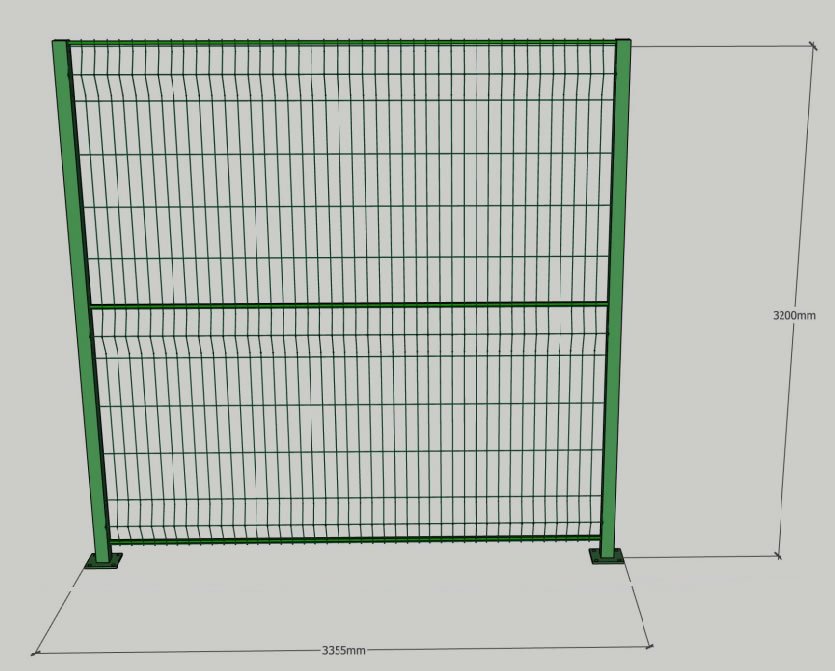

Rigid Anti Climb Mesh Fence
3355mm x 3200mm width
Welded mesh 4.0mm diameter wire
Mesh: 50x150mm
Finish: PVC Coated green color
Fence post: 100x100x4mm thick Gate post
250x250x10mm thick mild steel flat base plate
Rails: 40x40x4mm thick top, bottom and middle rails.

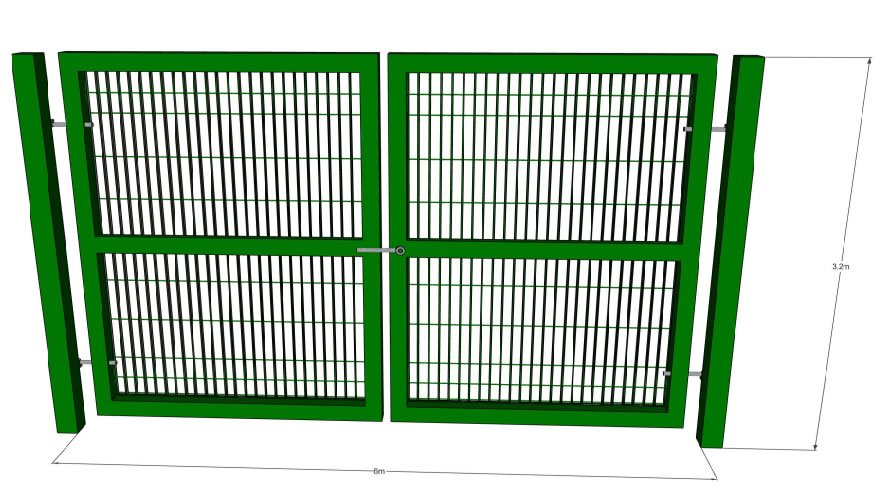

Fencing Gate for Rigid Mesh Fence System
Double Leaf Manual Gate with locking mechanism.
Dimensions: 6 M Wide x 3.2 M
Linked Welded Mesh 4.0mm dia. Wire. Mesh Size: 50x150mm, PVC Coated Green Color.
Gate Post: 100x100x4mm THK Gate Post.
40x40x3mm THK Gate Brace.
250x250x10mm THK MS Flat Base Plate attached to concrete footing.
40x40x4mm THK Square Tubing Frame.

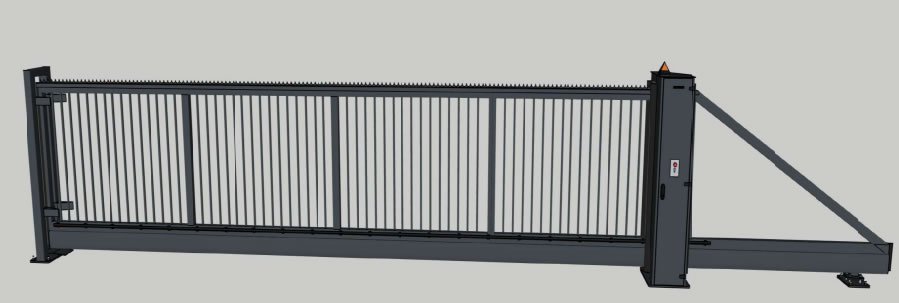

Cantilever Sliding Gates
Structural Components
Gate Frame Material: Galvanized steel, aluminum, or stainless steel (corrosion-resistant).
Gate Width: 12 meters (clear opening).
Gate Height: 3.2 meters (customizable)
Beam Size: Heavy-duty structural beams for cantilever support (e.g., 150x150mm or larger for steel).
Guide Rollers & Bearings: Sealed precision bearings with polymer or rubberized coating for smooth movement.
