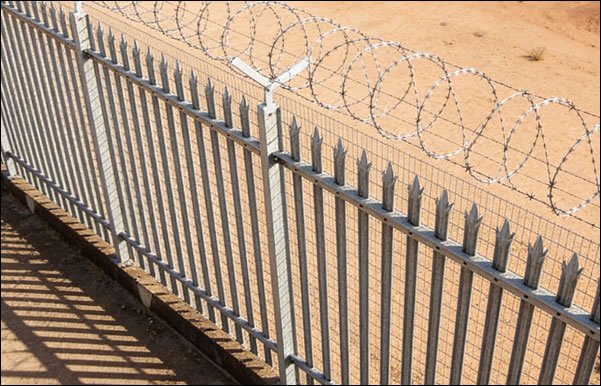

Razor Wire Palisade Fencing - Palisade Fence with Razor Wire Coils Security Top

Razor wire palisade fencing is a high-security perimeter system that combines steel palisade fencing with razor wire topping. Palisade steel fencing topped with razor wire coils offers enhanced anti-climb and anti-cut rigid fencing barrier. Razor wire significantly increases security level for fence line and gates. Razor wire palisade fencing is widely used for high-risk boundaries for industrial sites, utilities and substations.

Features & Benefits:
Combines steel palisade fencing with razor wire topping
High resistance to climbing, cutting
Hot-dip galvanized for excellent corrosion resistance
Compatible with vehicle and pedestrian access gates

Major Uses:
Property boundaries
Industrial sites
Utility and infrastructure projects
High-security compounds

Fence System Types

Razor Wire Steel Palisade Fence System - Pales,Rails, Post, Gates, Razor Wire

Material:
Steel palisade fence Grade G250 / Z600 galvanized
All components hot-dip galvanized, zinc quantity 600 g/m²
Panel Size:
2.1 m high × 4.0 m long
Pales:
W pale: 80 × 19 mm
Thickness: 2.5 mm
Pale length: 2.05 m
Single point spear top, 100 mm long
Spacing: 160 mm centres
18 pales per panel

Rails:
50 × 80 mm, 2.5 mm thick
4.0 m long
2 pcs per panel

Reinforcing Angle:
50 × 50 mm, 2.5 mm thick
4.0 m long
1 pc per panel

Posts:
100 × 150 mm, 2.5 mm thick
4.0 m long

Fasteners:
Stainless steel bolts
Tamper-resistant shear-off security nuts

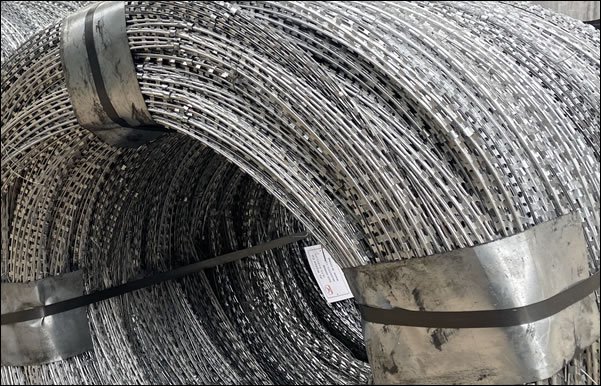

Razor Wire

Material: Concertina razor wire galvanized steel razor wire
Blade type: BT-25
Loops per coil: 56
Clips per loop: 2
Sheet metal:
0.50mm thickness (+ -0.05) zinc coating Z140
Tensile strength 368Mpa steel grade DX51D+Z EN 10346:2009
Wire:
2.50mm diameter zinc coating HDG 230-250gr / m2
Tensile strength 1600-1800N /mm2

Gates
Finish: Hot-dip galvanized finish as palisade fence
Accessories:
Gate posts
Chains
Locks
Drop bolts

Vehicle Gates:
3 sets double-leaf vehicle gates, 4 m wide
4 sets double-leaf vehicle / crash gates, 6 m wide
Pedestrian Gates:
3 sets single-leaf pedestrian gates
2.1 m high × 1.0 m wide

Steel Palisade Optional Types Popular for Razor Wire Palisade Fencing

Steel palisade 65 × 65, 3.0 m and 2.4 m high

Galvanized steel palisade fence
100 × 55 IPE galvanized steel posts, 2850 mm long
Panels with 5 mm horizontal crossbars at 1.65 m centres

2.4 m high galvanized steel palisade fencing
100 × 55 mm RSJ posts set in concrete at 2.75 m centres
2 × 50 × 50 × 6 mm angle iron rails
W-section triple-pointed pales fixed with M8 shear bolts

Steel palisade fencing for property boundaries
Fence height 2.0 m (1950 mm)
Includes double-leaf gate and single-leaf gate

Galvanized steel palisade fence
2.0 m high, D-shaped pales, 2.0 mm thickness
I-posts

Razor Wires Types Popular for Razor Wire Top Palisade Fencing

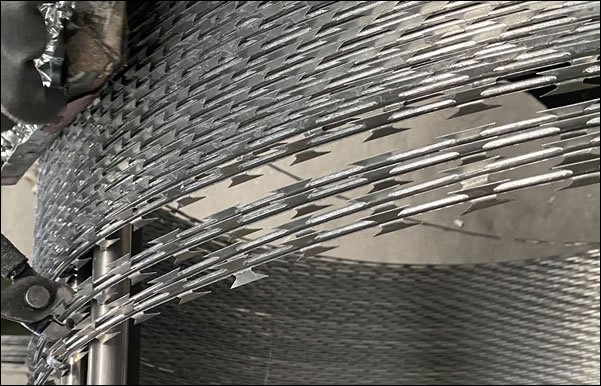

BTO-22 Razor Wire

2.5 mm core wire, 0.5 mm blade, Ø450–600 mm coils

CBT-60 Concertina Razor Wire
2.5 mm core wire, 0.5 mm blade, Ø600–900 mm coils

Flat Wrap Razor Wire BTO-30
BTO-30 blade razor wire
