Palisade Fence Hot Rolled Galvanised - Standard Pale and Security Pale Type

Palisade fencing manufactured from hot-rolled steel and finished with post-galvanising provides a strong and durable security barrier for perimeter protection. Hot-rolled steel pales offer high structural strength, hot-dip galvanising after fabrication enabling long-term corrosion resistance. Palisade fence hot rolled galvanized is suitable for outdoor long term perimeter security applications. Powder coating is optional for additional corrosion resistance.

Materials

Hot-rolled steel strip for W-section and D-section pales
Hot-rolled structural steel for posts and rails
Steel grade options: Q235 / S235 / S275 / DX51D

Standards

BS 1722-12 (Palisade Fence Standard – UK)
EN 10346 (Steel grades for fence components)
ISO 1461 (Hot-dip galvanizing requirements)
SANS / ASTM A123 (international galvanizing standards)

Palisade fence made from hot-rolled steel and post-galvanised components offers following features:
High strength;
Full HDG corrosion protection;
Secure anti-climb structure;
Modular panels available;
Customized products available.

Uses: Hot rolled galvanized steel palisade is mainly used in high security system for airports, railways, substations, oil and gas and utilities sites.

Fencing Types

Secure Palisade Steel Fence Hot Rolled Galvanized Pales, Rails and Posts

Steel Palisade 2.35mm and 2.85mm hot rolled and post galvanised.
Palisade fence can be supplied in module panels with defensive / security barbed wire.
We can manufacture palisade fencing of hot rolled steel post galvanized according to drawings or custom designs.

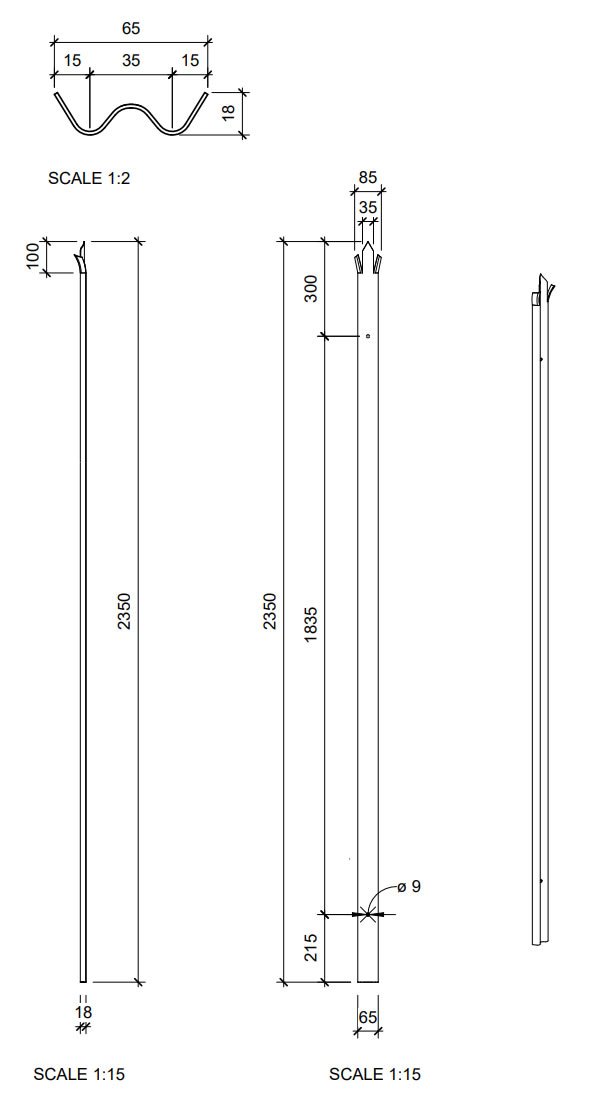

2.85mm Palisade Fence Hot Rolled and Post Galvanized After Fabricated

Standard Pale

Material: Galvanised steel
Additional: Powder coated optional
Pale Thickness: 2.85mm
Length: 2350mm

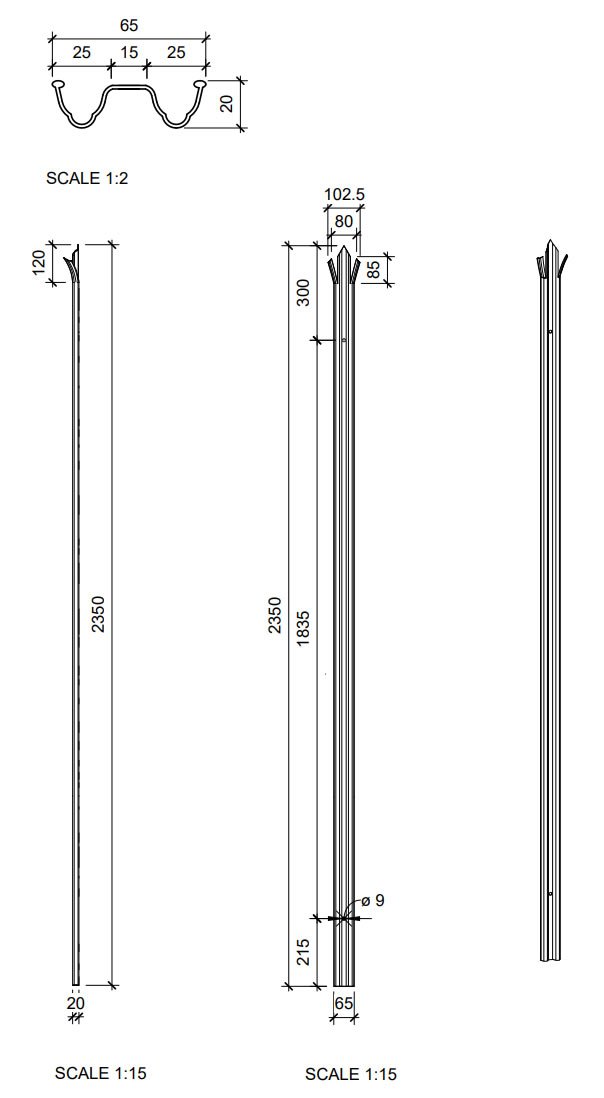

2.85mm Palisade Security Level Pale - 2350mm

Material: Galvanised steel
Additional: Powder coated optional
Pale Thickness: 2.85mm

2.35mm Palisade Fence Hot Rolled and Post Galvanized After Fabricated

Palisade Standard Pale 1950mm

Material: Galvanised steel
Additional: Powder coated optional
Length: 1950mm
Pale Thickness: 2.35mm

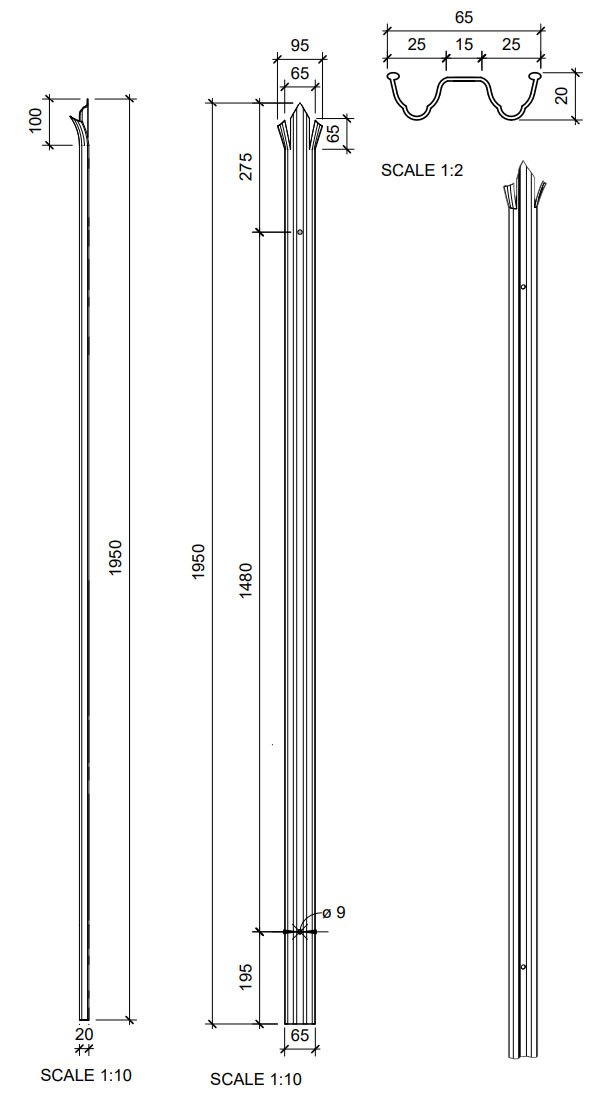

Palisade Security Pale 1950mm

Material: Galvanised steel
Additional: Powder coated optional
Length: 1950mm
Pale Thickness: 2.35mm

Hot Rolled Galvanized Steel Palisade Panel Modules

Palisade Panel Hot Rolled Galvanized can be supplied in modules: 2m, – 2.5 m

Gates:
· 1m x 1m wide
· 2m x 1m wide
· 2x1.5 wide
· 2 x 2m wide

Fence and Gates Height: 2 m
Barbed wire coils height: 0.5 m
Fences material: Hot-dip galvanized after fabricated hot rolled steel
